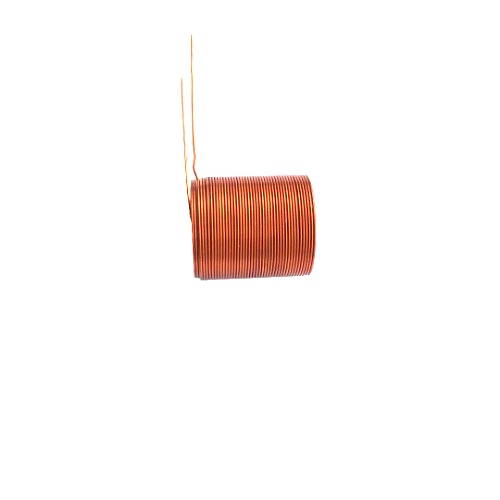

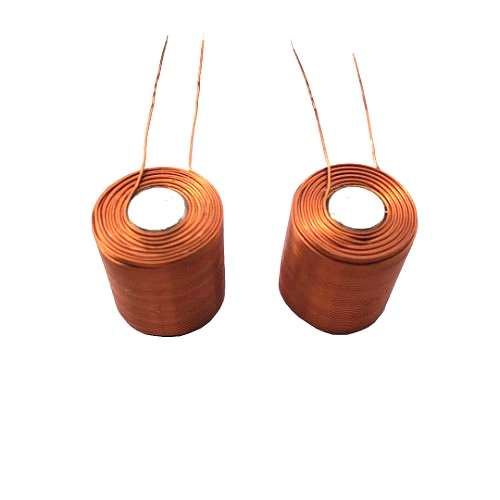

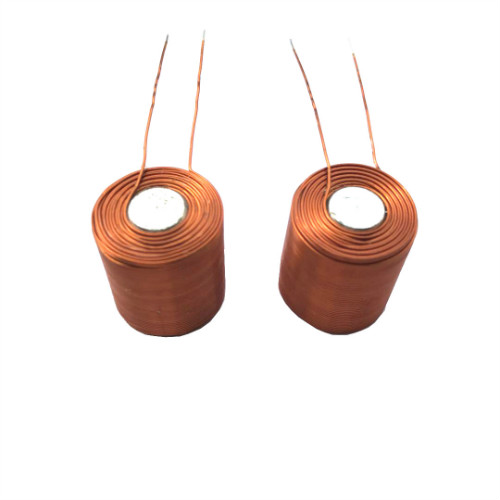

Maglev 120 Coils

The magnetic levitation 120 coil adopts the counterclockwise winding method and is a product mainly used for levitation display. At present, the magnetic levitation inductance coil is used in the fields of levitation car models, mice, coffee tables, desk lamps and so on.

Magnetic levitation inductance coils are used in different fields. When purchasing different products and different use environments, the use effects brought by the selection of materials during the winding process are different. At this time, the adaptability of different materials is different. It is very big. Before winding, first choose the best material according to the actual use environment.

When the magnetic levitation coil is applied to the table lamp, then the electromagnetic levitation technology is used here. The principle of the electromagnetic levitation technology is to install a permanent magnet and an inductive coil or an electromagnet on the base. What is going on with these two? This is the case. The permanent magnet will have a magnetic field, and this magnetic field will attract each other with the suspension or the magnet on the suspension tray. One is the N pole and the S pole. So the two are attracted to each other. The permanent magnet The magnet is a circular ring, and a magnetic field eddy current will be generated in the middle. This eddy current is an upward force, which is why it can levitate, because it is also mentioned before. Attraction. This eddy current is the premise of levitation, and then To make it levitate stably, you need to use the 4 electromagnets in the middle, which generate a pulling force. In this way, the suspension will not be unstable. Of course, this also involves a sensor in the middle. This sensor will sense the magnetic field force. The size and direction of the lamp. Then there is the upper side. The table lamp has a tray on the upper side to support the lamp and the lampshade. There are also LED lights in the lampshade. The reason why this lights up is because there are installations on the base and the suspension. The transmitting and receiving device of wireless conduction, so it will light up. The suspension and light of the magnetic levitation table lamp are two magnetic fields. It is necessary to make these two magnetic fields not interfere with each other or reduce the mutual interference between them. At the technical level, in modern military warfare, it is a battle between electronic information. Whether it can resist interference is very important. The principle of the maglev lamp is these.

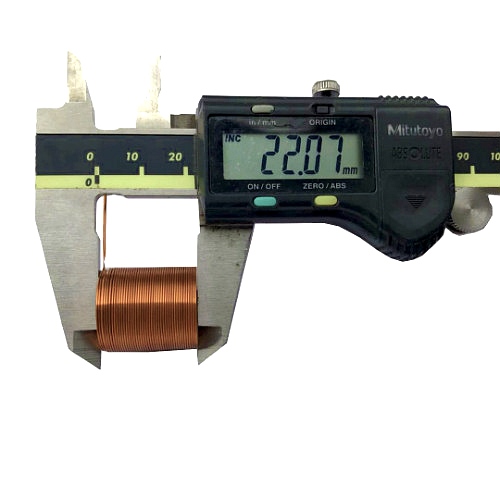

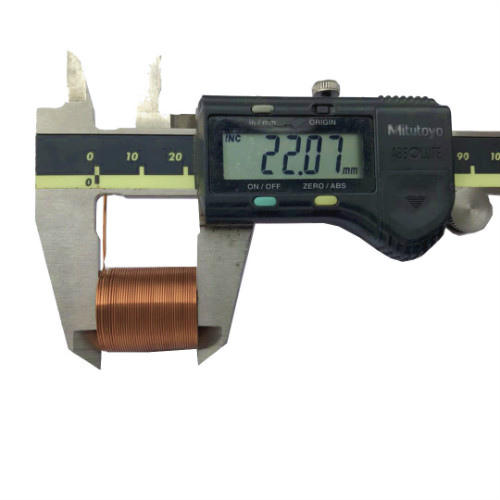

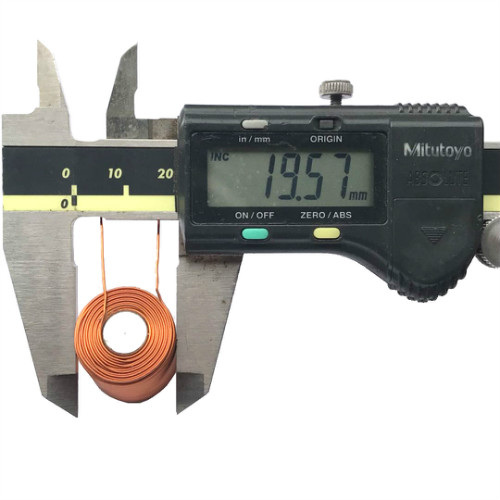

Dimensions (mm)
