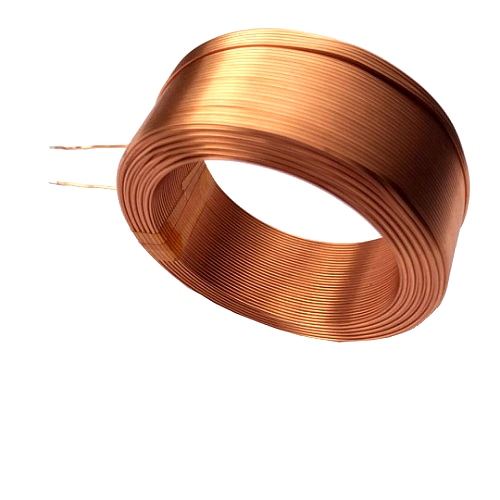

Linear Motor Coil

The linear motor coil is a coil specially used for linear motors. Linear motor is an electric transmission device that directly converts electrical energy into linear motion mechanical energy. It can save a lot of intermediate transmission mechanisms, speed up the system response speed, and improve system accuracy. Linear motor coils have high efficiency at work, so they are widely used. The types of linear motors can be divided into: unilateral flat type, bilateral flat type, disc type, cylindrical type (or tube type), etc. ; According to the working principle, it can be divided into: DC type, asynchronous type, synchronous type and stepping type, etc.

Linear motor coils are mainly used in linear motors and robots. They have the characteristics of fast speed, accurate positioning, high precision, strong controllability, stability and durability. At present, many linear motors are widely used in industrial equipment. Industries include: orbital motors, industrial robots, automatic conveying equipment, intelligent robots, magnetic levitation products, etc.

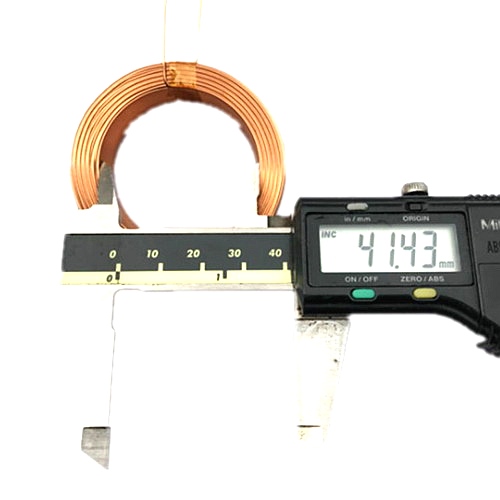

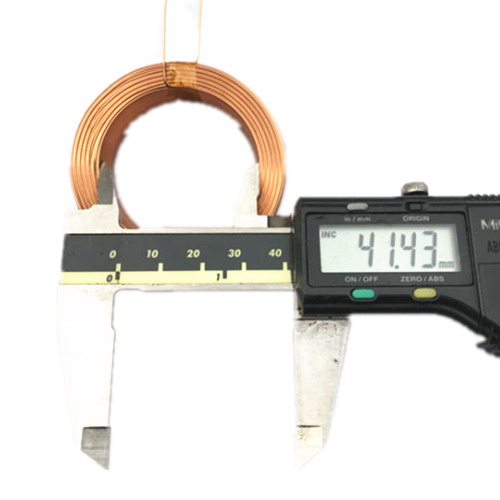

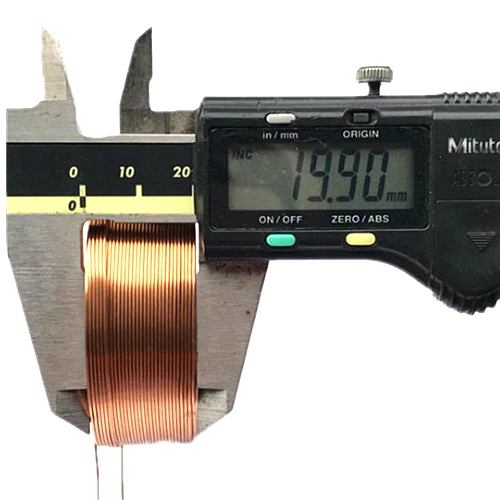

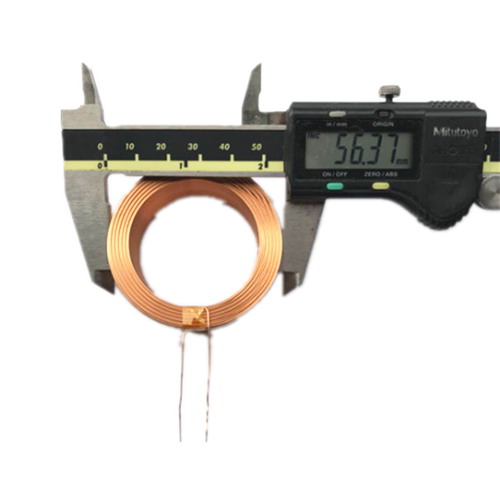

Linear motor coil size parameters are as follows (mm)
